Combining .NET Aspire with Temporal - Part 2

Published:  at  05:55 PM
Suggest Changes

Building a Distributed Workflow App with .NET Aspire and Temporal

Part 2: Deploying a Temporal-based Workflow App with .NET Aspire to Kubernetes

In the first post, I showed you how to put together a resilient, distributed workflow-powered example application using .NET Aspire and Temporal.io. I covered local development with Aspire’s AppHost and containerized services. In this article I’ll go more in the direction of deployment with a focus on Kubernetes. In part three of this series I’ll move back to the application and focus on payload encryption and codec servers in Temporal to secure your application state from prying eyes. IF this is all new to you then feel free to read my primer on the evolution of building fault tolerant resilient distributed systems.

Goals

Important Notes About Temporal SDK Compatibility

When building .NET applications that use the Temporal .NET SDK in containerized environments, it’s critical to ensure compatibility with native dependencies. The Temporal .NET SDK uses native Rust-based binaries under the hood for communication with the Temporal server.

Because of this, you must disable trimming and AOT publishing, or the SDK will fail at runtime due to missing symbols or P/Invoke failures.

In your .csproj files (for both API and Worker), add the following configuration:

<PropertyGroup>
  <PublishAot>false</PublishAot>
  <PublishTrimmed>false</PublishTrimmed>
</PropertyGroup>

Without this, publishing your app will strip out required metadata and native interop support.

Also note that applications using the Temporal client can not run on alpine. Alpine is not supported by Temporal SDK due to musl/GLIBC incompatibilities.

Therefore you need to make sure you’re careful which base image you’re using. For example the worker Dockerfile:

FROM mcr.microsoft.com/dotnet/aspnet:9.0 AS base
USER $APP_UID
WORKDIR /app

FROM mcr.microsoft.com/dotnet/sdk:9.0 AS build
ARG BUILD_CONFIGURATION=Release
WORKDIR /src
COPY ["Worker/Worker.csproj", "Worker/"]
RUN dotnet restore "Worker/Worker.csproj"
COPY . .
WORKDIR "/src/Worker"
RUN dotnet build "Worker.csproj" -c $BUILD_CONFIGURATION -o /app/build

FROM build AS publish
ARG BUILD_CONFIGURATION=Release
RUN dotnet publish "Worker.csproj" -c $BUILD_CONFIGURATION -o /app/publish /p:UseAppHost=false

FROM base AS final
WORKDIR /app
COPY --from=publish /app/publish .
ENTRYPOINT ["dotnet", "Worker.dll"]

Installation Prerequisites

1. Install Docker Desktop

Download Docker Desktop from https://www.docker.com/products/docker-desktop/.

After installation:

Note that you may prefer Rancher Desktop but since I have a Docker Business license in work and Docker Desktop has a free license for hobby development (like this article series), I’ll stick with it because it is familiar.

2. Install Chocolatey (if not already installed)

Open an elevated PowerShell window and run:

Set-ExecutionPolicy Bypass -Scope Process -Force;
iwr https://community.chocolatey.org/install.ps1 -UseBasicParsing | iex

3. Install Required CLI Tools

dotnet tool install -g aspirate
choco install kustomize
choco install kubernetes-cli -y

Verify the tools are installed:

aspirate --version
kubectl version --client
kustomize version

Since it’s always useful to know what version someone was running when they wrote their tutorial:

PS C:\Users\rebec\RiderProjects\TemporalAspireDemo\AppHost> aspirate --version

     _                    _           ___
    / \     ___   _ __   (_)  _ __   ( _ )
   / _ \   / __| | '_ \  | | | '__|  / _ \
  / ___ \  \__ \ | |_) | | | | |    | (_) |
 /_/   \_\ |___/ | .__/  |_| |_|     \___/
                 |_|
Handle deployments of a .NET Aspire AppHost

9.1.0+c2905d2ab854aaac7f86f3d63da3b93950e76630
PS C:\Users\rebec\RiderProjects\TemporalAspireDemo\AppHost> kubectl version --client
Client Version: v1.32.2
Kustomize Version: v5.5.0
PS C:\Users\rebec\RiderProjects\TemporalAspireDemo\AppHost> kustomize version
v5.5.0
PS C:\Users\rebec\RiderProjects\TemporalAspireDemo\AppHost>

4. Setup your own Docker Registry

It isn’t absolutely necessary to use Docker Hub Registry / Azure Conatiner Registry for local development work, so you can install your own for local use. Simply run the following container:

docker run -d -p 5001:5000 --restart always --name registry registry:2

Note: It isn’t critical to run your own registry. Just make sure that any imagePullPolicy in your k8s manifests are set to never.

Project Structure (with our k8s manifests)

TemporalAspireDemo/
├── AppHost/                # Aspire app host
├── Api/                   # Minimal API to trigger workflows
├── Worker/                # Executes workflows and activities
├── Workflows/             # Reusable workflow/activity definitions
├── ServiceDefaults/       # Shared OpenTelemetry config
├── .k8s/                  # Aspirate-generated K8s manifests

Aspire Deployment Options

.NET Aspire supports a few different deployment targets. For most local setups, you’ll use one of these:

  1. AppHost (local orchestration) – Ideal for fast, iterative development. Runs your containerized services with local orchestration.
  2. Docker Compose (via Aspirate) – Suitable for development scenarios that require multiple services but not full Kubernetes complexity (pre-release).
  3. Kubernetes via Kustomize (generated by Aspirate) or Helm (manual) – Suitable for more production-like local environments and CI/CD.
  4. Azure Container Apps (via Aspire.Azure) – Useful for cloud-native deployment without managing Kubernetes directly (basically Bicep as I understand it - I’ve always been a bit meh about Bicep).

Producing the Aspire manifest

dotnet run --project TemporalAspireDemo.AppHost\TemporalAspireDemo.AppHost.csproj
  --publisher manifest
  --output-path ../aspire-manifest.json

This will:

Example Manifest

For more information on understanding the manifest, there is great documentation available.

{
  "$schema": "https://json.schemastore.org/aspire-8.0.json",
  "resources": {
    "temporal": {
      "type": "container.v0",
      "connectionString": "",
      "image": "temporalio/admin-tools:latest",
      "entrypoint": "temporal",
      "args": [
        "server",
        "start-dev",
        "--port",
        "7233",
        "--http-port",
        "7234",
        "--metrics-port",
        "7235",
        "--ui-port",
        "8233",
        "--ip",
        "0.0.0.0",
        "--log-level",
        "info"
      ],
      "bindings": {
        "server": {
          "scheme": "https",
          "protocol": "tcp",
          "transport": "http2",
          "targetPort": 7233
        },
        "ui": {
          "scheme": "http",
          "protocol": "tcp",
          "transport": "http2",
          "targetPort": 8233
        },
        "metrics": {
          "scheme": "http",
          "protocol": "tcp",
          "transport": "http2",
          "targetPort": 7235
        },
        "http": {
          "scheme": "http",
          "protocol": "tcp",
          "transport": "http2",
          "targetPort": 7234
        }
      }
    },
    "api": {
      "type": "project.v0",
      "path": "../Api/Api.csproj",
      "env": {
        "OTEL_DOTNET_EXPERIMENTAL_OTLP_EMIT_EXCEPTION_LOG_ATTRIBUTES": "true",
        "OTEL_DOTNET_EXPERIMENTAL_OTLP_EMIT_EVENT_LOG_ATTRIBUTES": "true",
        "OTEL_DOTNET_EXPERIMENTAL_OTLP_RETRY": "in_memory",
        "ASPNETCORE_FORWARDEDHEADERS_ENABLED": "true",
        "HTTP_PORTS": "{api.bindings.http.targetPort}",
        "ConnectionStrings__temporal": "{temporal.connectionString}"
      },
      "bindings": {
        "http": {
          "scheme": "http",
          "protocol": "tcp",
          "transport": "http"
        },
        "https": {
          "scheme": "https",
          "protocol": "tcp",
          "transport": "http"
        }
      }
    },
    "worker": {
      "type": "project.v0",
      "path": "../Worker/Worker.csproj",
      "env": {
        "OTEL_DOTNET_EXPERIMENTAL_OTLP_EMIT_EXCEPTION_LOG_ATTRIBUTES": "true",
        "OTEL_DOTNET_EXPERIMENTAL_OTLP_EMIT_EVENT_LOG_ATTRIBUTES": "true",
        "OTEL_DOTNET_EXPERIMENTAL_OTLP_RETRY": "in_memory",
        "ConnectionStrings__temporal": "{temporal.connectionString}"
      }
    }
  }
}

Deploying with Docker Compose (Locally or Remotely)

Alternative publishers hit in Aspire 9.2. You’ll need to add the NuGet package Aspire.Hosting.Docker to the AppHost and then add the following line to support Aspire docker compose deployments:

builder.AddDockerComposePublisher();

For there experiemental publishing features you’ll need to install the pre-release CLI:

dotnet tool install -g aspire.cli --prerelease

Not only will the docker-compose.yaml be generated, but it also includes an .env file (make sure those are excluded from source control with your .gitignore)

aspirate generate compose

Then run:

docker compose up --build

Edit docker-compose.override.yml for configuration overrides.

Deploying to Coolify

Coolify supports Docker Compose deployment directly. Export the Compose bundle from Aspirate and configure your Coolify environment to read from it. This is a convenient way to deploy Aspire-based systems without Kubernetes, particularly for demos and staging. See my other article on deploying .NET applications to Coolify.

Generating Kubernetes Manifests with aspirate

Once you’ve defined your Aspire application using the DistributedApplicationBuilder in .NET 9, you can generate Kubernetes-ready deployment artifacts using the aspirate CLI:

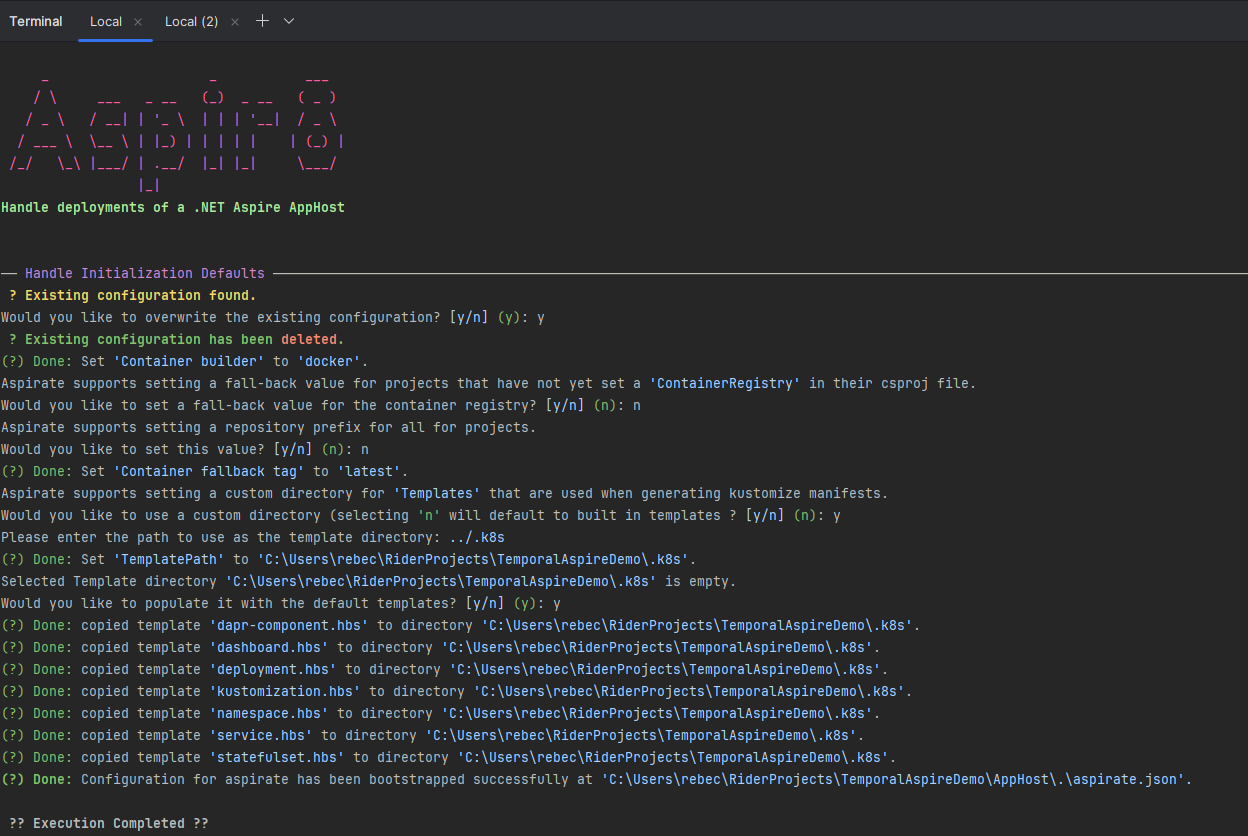

aspirate init       # generates the aspirate.json file

aspirate init

Moving on we will build all the resources required using build:

aspirate build      # builds all the resource defined in the manifest.json

Finally using generate to produce our manifests

aspirate generate   # generates the kubernetes files

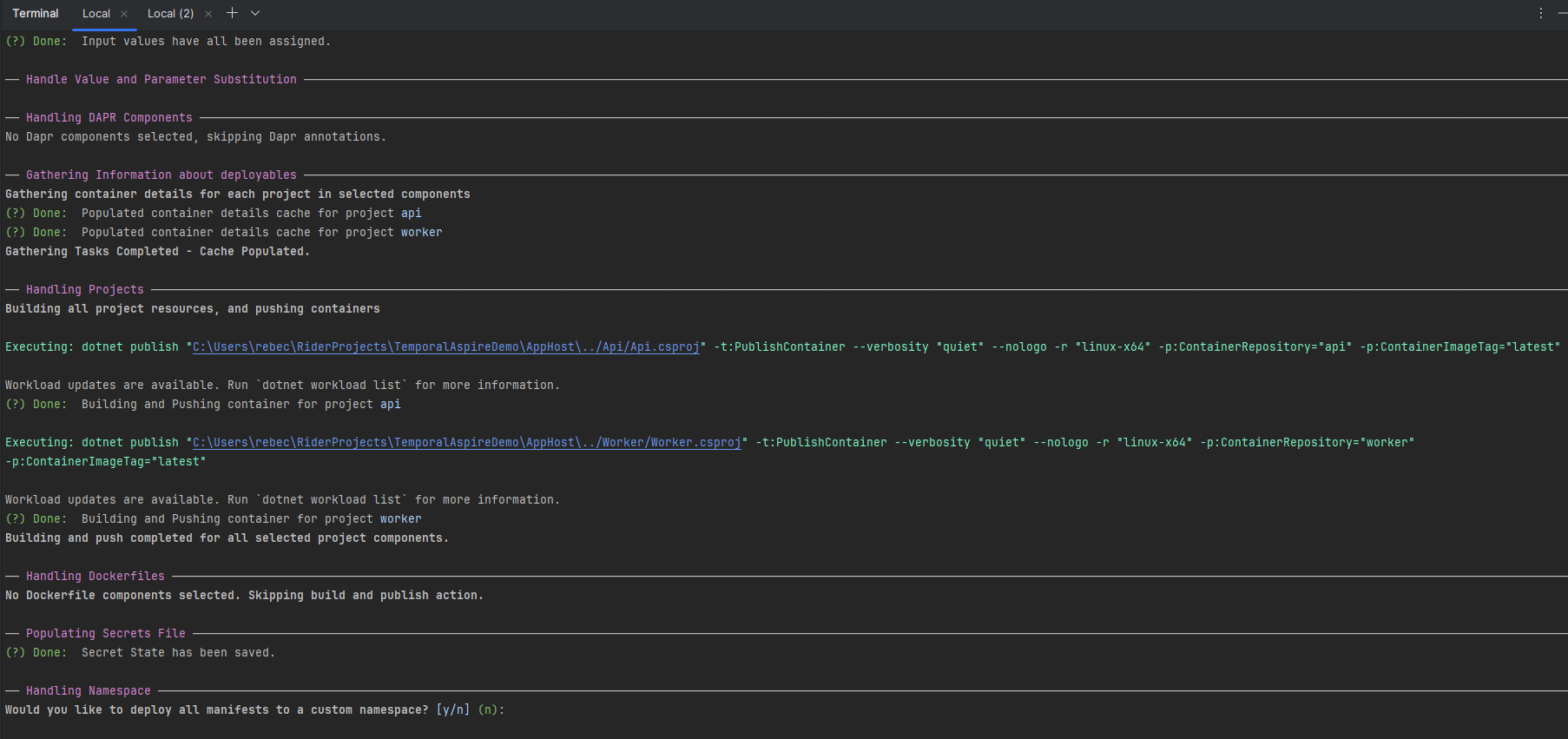

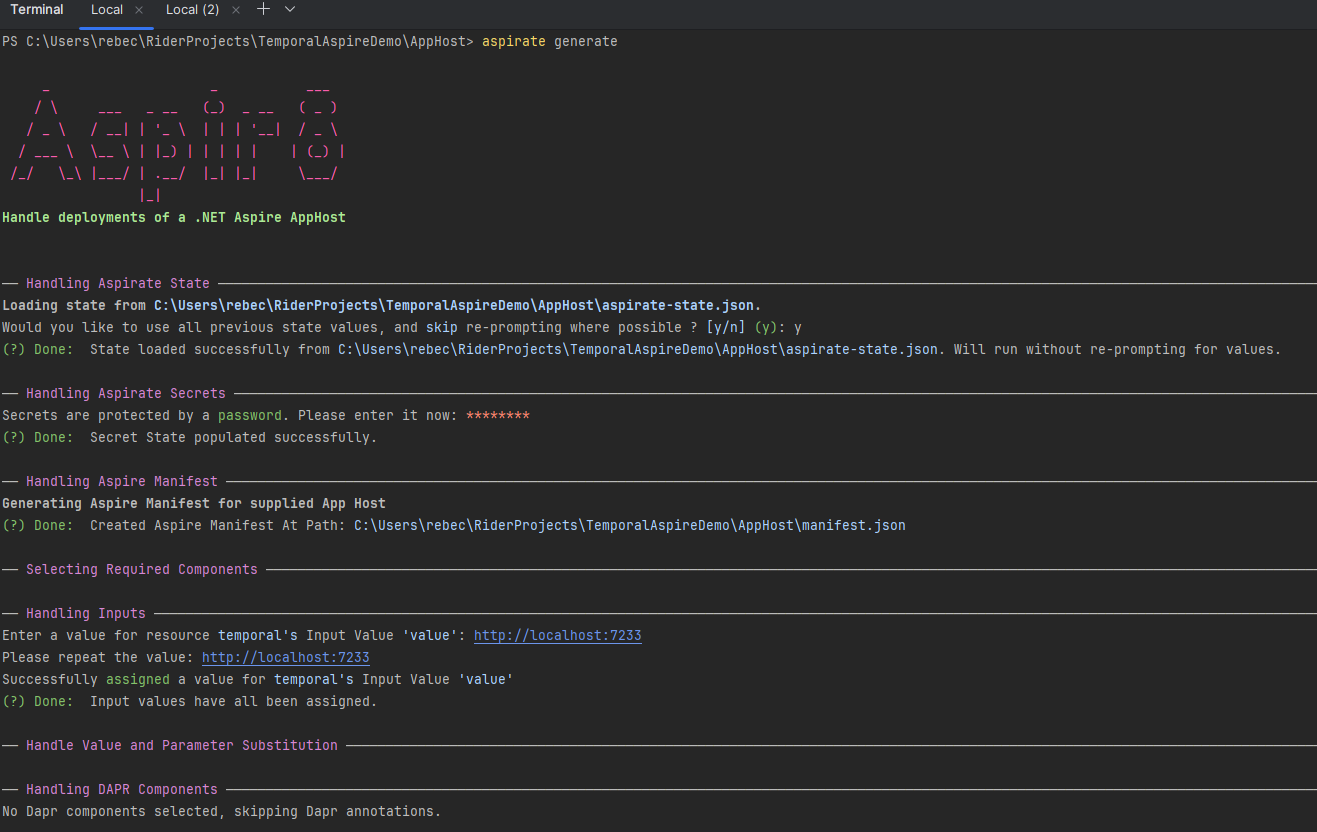

aspirate generate 1 aspirate generate 2 aspirate generate 3

This produces a structure like the following:

k8s/
├── base/
│   ├── kustomization.yaml
│   ├── api-deployment.yaml
│   ├── api-service.yaml
│   ├── worker-deployment.yaml
│   ├── temporal-deployment.yaml
│   ├── temporal-service.yaml
│   ├── configmap-api-env.yaml
│   ├── aspire-dashboard.yaml
│   └── ... (other services)
aspire-manifest.json

k8s/base/

This folder uses Kustomize to define your app’s base Kubernetes deployment:

This is pure Kubernetes YAML with Kustomize overlays, not Helm.

You can apply this directly with aspirate apply, but rather than do this, let’s skip this step and look at using kustomize and kubectl instead. I’ll include it for completeness sake:

aspirate apply      # deploys them (simply) using aspirate

Let’s take this step by step:

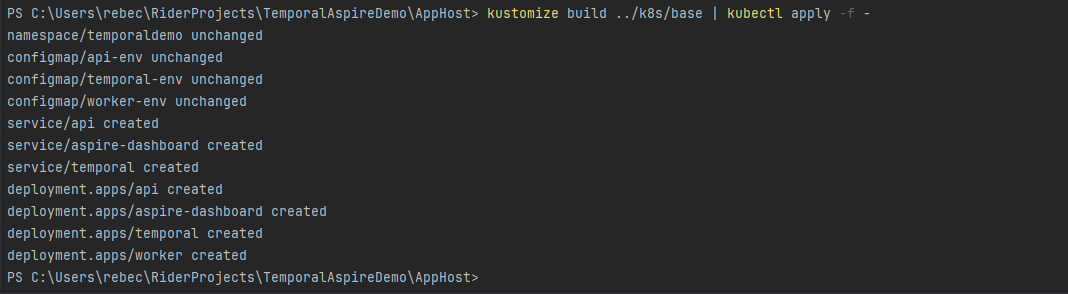

kustomize build k8s/base | kubectl apply -f -

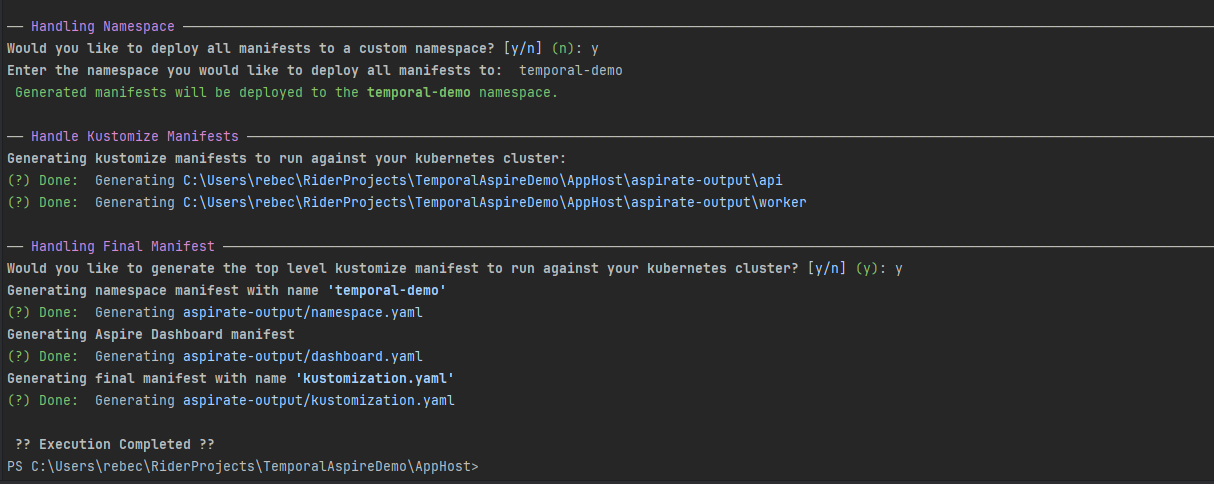

aspirate generate 3

Or extend it with overlays for specific environments, but I’ll skip this for now, since I just have the one:

k8s/
├── base/
├── overlays/
│   ├── dev/
│   └── prod/

Converting to Helm (Optional)

If desired, you can:

  1. Run helm create temporal-aspire-app to scaffold a chart
  2. Copy contents of k8s/base/ into templates/
  3. Parameterize using Helm values:
    image:
  repository: my-api
  tag: { { .Values.image.tag } }
  4. Replace kustomize build with:
    helm template aspire-app ./aspire-app | kubectl apply -f -

This hybrid approach is useful for integrating Aspire with existing Helm-based GitOps or CI/CD pipelines.

Deploying to Kubernetes

To deploy your Aspire application to a local Kubernetes cluster such as Docker Desktop or Rancher Desktop in a more granular way than just doing aspirate apply, since I want to give people more familiar with kubectl / kustomize an idea of what that is doing:

  1. Build your local images:
    docker build -f Api/Dockerfile -t temporalaspire/api:latest .
docker build -f Worker/Dockerfile -t temporalaspire/worker:latest .
  2. Make sure the image names in your deployment YAML match these tags, and choose imagePullPolicy: Never is set to prevent Kubernetes from trying to pull from a registry if you’ve choose not to use a registry and manually deploy (noted above). Or if you are using a registry (local or otherwise) switch to imagePullPolicy: Always to pull even if it is present locally, or IfNotPresent, which is the default which pulls if the image isn’t already on the node.
  3. Apply the manifests using Kustomize:
    kustomize build ./k8s/base | kubectl apply -f -
  4. Monitor deployment status:
    kubectl get pods
  5. Forward the API service port to your local machine:
    # port forward the temporal UI
kubectl port-forward svc/temporal 8233:8233 -n temporaldemo
# port forward the API
kubectl port-forward deployment/api 8080:8080 -n temporaldemo
# port forward the aspire dashboard
kubectl port-forward svc/aspire-dashboard 18888:18888 -n temporaldemo
  6. Test the workflow trigger endpoint:
    curl http://localhost:5000/trigger
  7. Check logs for troubleshooting:
    kubectl logs deployment/api -n temporaldemo
kubectl logs deployment/worker -n temporaldemo
  8. Updating a rolling out changes
     kubectl rollout restart deployment/worker -n temporaldemo
  9. Drop everything
    # WARNING: USe this carefully!
kubectl delete all --all -n temporaldemo

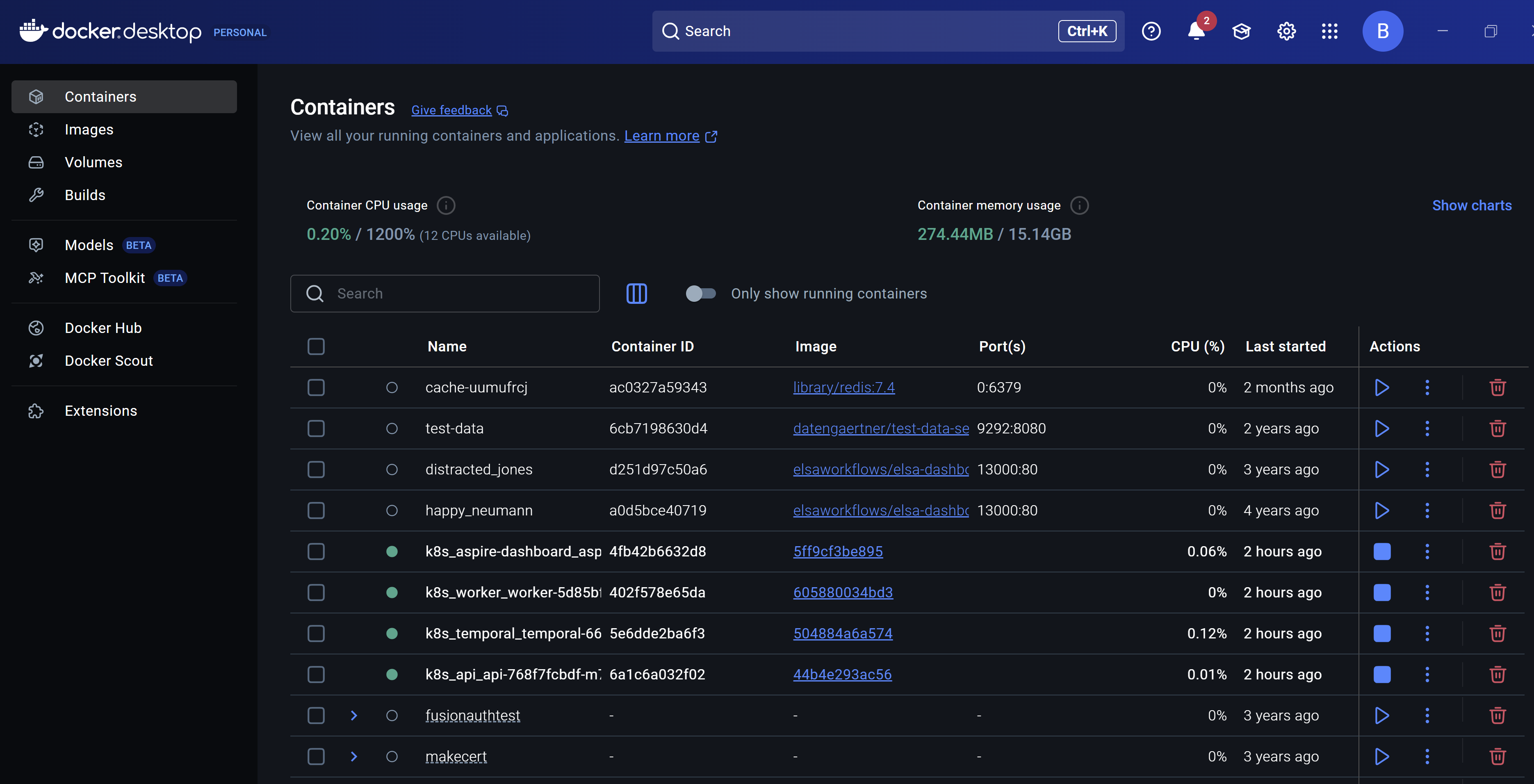

aspirate docker desktop

Deploying with Aspire.Azure to Azure Container Apps (via CI/CD)

The easiest way to do this with CI.CD is using azd. Microsoft have a pretty good walkthrough. I presume it’s bicep but I haven’t investigated it further yet since it’s not much of interest as we are a Pulumi based team at work.

Next Steps

You’ve now explored multiple deployment paths for your Aspire + Temporal app:

In Part 3, we’ll explore how to protect sensitive data by using custom Temporal codecs to encrypt payloads in-flight and at rest.
